Single Point weighing sensors from China manufacturer - Zhejiang South-Ocean Sensor Manufacturing Co., Ltd

Price:	55.0~180.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

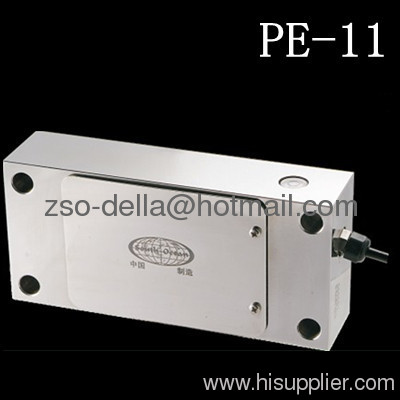

Model No.: PE-11

Production Capacity: 100,000~200,000pcs/month

Output: Analog Sensor

Usage: Pressure Sensor

Material: Stainless Steel

Other service: OEM, Custom made

Means of Transport: Ocean,Air;Express

Packing: Standard carton

Theory: Resistance Sensor

Brand Name: South-Ocean, OEM, or no mar...

Capacity: 50lb~625lb

1.Material: Stainless Steel
2.Capacity: 50lb,125~250lb,625lb
3.Sensitivity: 1±0.01 mv/v
4.Accept OEM and Custom made

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Characteristic	Stainless steel, parallel triplicate beam structure, simple to install, easy to use. Corner adjusted before delivery to ensure consistent output in stated load plane. Suitable for electronic platform scale.
Materials	Stainless steel
Suitable for	Electronic platform scale, etc
Capacity	50lb~625lb
Sensitivity	1.00±0.010	MV/V
Nonlinearity	±0.02	%FS
Hysteresis	±0.02	%FS
Repeatability	±0.01	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	385±10	Ω
Output resistance	350±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ5.4X3(5)	M
Cable color code	Input: red+ black- Output: green+ white-

More detail information about load cells, pls check the attached PDF file.

About South-Ocean:
1. Established in 1985, and 80% products sold to abroad.

2. Manufacture more than 100 kinds of Load Cells (capacity from 10g to 1000ton)with good materials and high precision, best offer

3. Accept OEM order and Custom made

4. Have China Patent Load Cells (quadruple shear beam load cell,etc.)

If you are interested to know more about us, pls tell Della Zhong.

Download Attachment
