single point load cells from China manufacturer - Zhejiang South-Ocean Sensor Manufacturing Co., Ltd

Price:	8.0~15.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

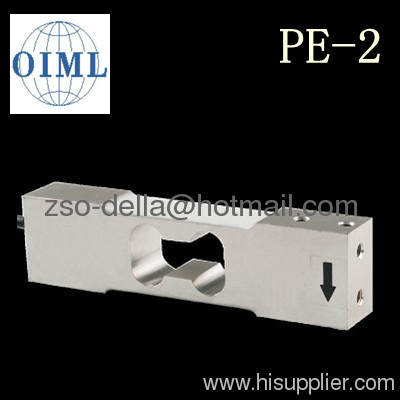

Model No.: PE-2

Production Capacity: 100,000~200,000pcs/month

Output: Analog Sensor

Usage: Pressure Sensor

Material: Aluminum

Other service: OEM, Custom made

Means of Transport: Ocean,Air;Express

Packing: Standard carton

Theory: Resistance Sensor

Brand Name: South-Ocean, OEM, or no mar...

Capacity: 3kg~100kg,5lb~200lb

1.Material: Aluminum
2.Capacity: 3~100kg,5~200lb
3.Sensitivity: 1±0.1(0.3~3kg),2±0.1(6~100kg)
4.Certificate: OIML
5.Accept OEM and Custom made

Specification The general data of South-Ocean as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Characteristic	Box type single point loading structure. Corner adjusted before delivery to ensure consistent output in stated load plane. Simple to install, easy to use.
Materials	Aluminum
Suitable for	Electronic platform scale, etc. The biggest platform size: 400mmX400mm
Capacity	3KG~100KG
Sensitivity	1±0.1(0.3~3KG) 2±0.1(6~250KG)	MV/V
Nonlinearity	±0.02	%FS
Hysteresis	±0.02	%FS
Repeatability	±0.01	%FS
Creep(30 minutes)	±0.02	%FS
Zero balance	±1.00	%FS
Temperature effect on zero	±0.02	%FS/10℃
Temperature effect on output	±0.02	%FS/10℃
Input resistance	410±15	Ω
Output resistance	350±3	Ω
Insulation resistance	≥5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	℃
Operating temperature range	-20~+60	℃
Safe overload	120	%FS
cable	Φ5.4X3	M
Cable color code	Input: red+ black- Output: green+ white-

More detail information about load cells ,pls check the attached PDF file.

About South-Ocean:
1. Established in 1985, and 80% products sold to abroad.

2. Manufacture more than 100 kinds of Load Cells (capacity from 10g to 1000ton)with good materials and high precision, best offer

3. Accept OEM order and Custom made

4. Have China Patent Load Cells (quadruple shear beam load cell,etc.)

If you are interested to know more about us, pls tell Della Zhong.
